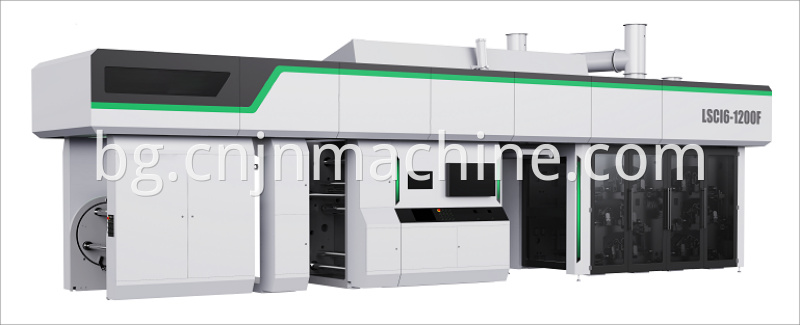

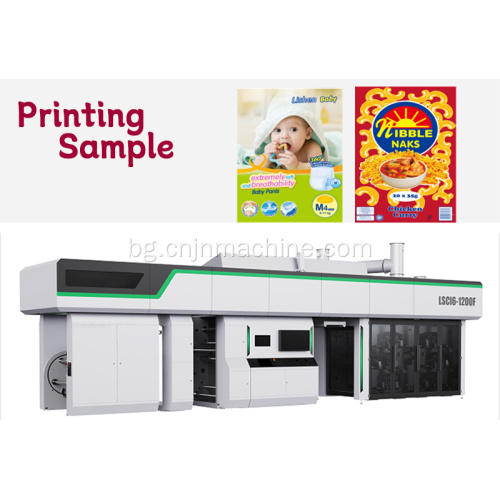

| Model | Master Series YTE81000 |
| Max Width Of Material | 1000mm |
| Printing color | 8 colors |
| Max. Width of Printing | 960mm |
| Machinery mechanical speed | 500m/min |
| Max. Speed of Material Printing | 350-450m/min, according to different material and print design |
| Material | Paper (less than 65gsm),PE,PET,BOPP,PVC |
| Max. Printing Length (Repeat) | 360mm-960mm |
| Printing Cylinder | Sleeve type |
| Ceramic Anilox Roller | Sleeve type |
| Max. Unwind / Rewind Dia | Ф800mm |
| Adhesive Tape Thickness | 0.38mm |
| Thickness of Plate | 1.7mm, 1.14mm, 2.84mm，2.28mm Or as your request |
| Registration Precision | ±0.08mm |
| Heating Method | Electric heating |
| Ink | Water base ink or solvent ink |
| Power | Voltage:380V, 3PH, 50HZ/60HZ |
| Part 1 Unwinding&Rewinding | |
| Non stop unwinding | Non stop rewinding |
 |
 |
|

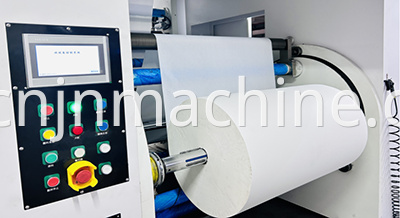

1.Central drive unwinding, equipped with servo motor, inverter closed loop control.
2.Tension control: Using ultra-light floating roller control, automatic tension compensation, closed loop control (low friction cylinder position Detection, precise pressure regulating valve control, automatic alarm or shutdown when the roll diameter reaches the set value).
3.It has the function of automatic shutdown when the material is interrupted, and the tension maintains the function to avoid the substrate slack and deviation during the shutdown.
4.The external diameter of the gas expansion shaft is 3 inches, and the clamping mode of the gas expansion shaft is 2-HEAD cylinder detached type .
5.Automatic EPC system is configured before printing.
6.Automatic correction of edge position: Automatic EPC system is configured before printing.
7.Automatic correction of edge position: set up the rectification system of four roller automatic EPC ultrasonic probe with full operation before printing, which has manual / automatic / central return function, and the left and right translation can be adjusted.
8.Non stop rewinding It has the function of automatic stop when broken material and tension maintenance avoid the looseness and deviation of substrate during shutdown
9.Non stop rewinding, equipped with servo motor, Tension control adopts ultra light floating roller control, tension automatic compensation, closed-loop control, taper tension arbitrary setting (low friction cylinder positioning detection, precision pressure regulating valve control, coil diameter reaching the set value can automatically alarm or stop)
|
|
| Part 2 Printing Unit | |
| Sleeve Cylinder System | |
 |
 |
|

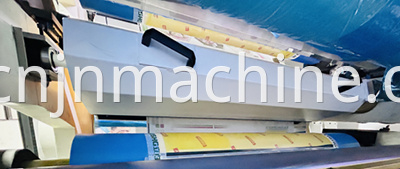

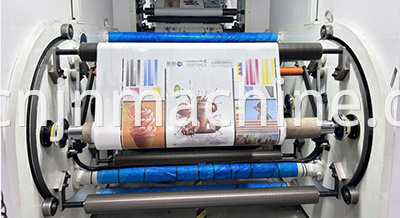

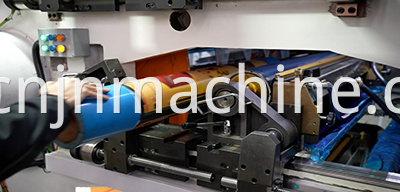

1.Printing unit consists of frame, central drum roller ,sleeve printing roller, sleeve anilox roller, chamber doctor blade, ink supply system and an independent servo drive system.
2.Flexographic printing method: printing unit are distributed around the central drum in the form of satellite
3.Driven by gearless electronic shaft.
4.Printing unit side adopts window design, it is convenient for operators to observe the printing process.
5.Printing unit is equipped with two hand operators for easy operation.
6.In the process of accelerate, Automatic compensation of printing pressure.
7.It has function of automatically avoiding material head when unwind, connecting and changing material.
8.Mobile lifter, easy for operator to access the upper printing unit.
9.With printing plate phase and production menu management and memory function.
10.The pressure between the plate roller and the central impression cylinder is driven by 2 servo motors per color, and the pressure is adjusted by ball screws and upper and lower double linear guides, with position memory function.
11.The pressure between the anilox roller and the printing plate roller is driven by 2 servo motors for each color, and the pressure is adjusted by ball screws and upper and lower double linear guides, with position memory function.
12.The printing pressure has the function of fast forward and backward, which can realize fast movement and precise adjustment.
13.Each printing unit has independent control and can be separated at any time.
14.The printing pressure can be adjusted automatically according to the speed, and the parameters and permissions can be set.
15.Central Drum with water cooling system
|
|
| Sleeve Cylinder | |
 |
 |
|

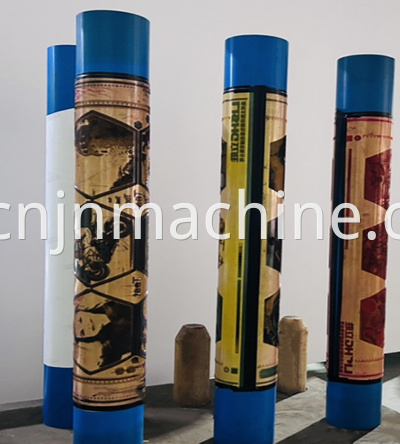

1.Printing roller adopts the inverted in-line cantilever end locking support structure, and the double line precision roller bearing is closely matched with the air expansion mandrel, which is convenient and quick to replace the sleeve.
2.Printing Cylinder sleeve imported from Europe.
3.The bridge sleeve can be used.
4.Each color Printing cylinder is driven by Rockwell (AB) servo motor.
5.The longitudinal alignment is servo 360 ° electric adjustment, and the transverse alignment is electric adjustment, with the maximum adjustment range of ± 10 mm.
6.Printing roller’s horizontal movement is driven by synchronous motor.
7.Printing perimeter can be set steplessly within the specified range.
8.Sleeve is easy to disassemble and can be inflated at any position where the mandrel stops.
|
|
| Fully Automatic Ink Supply Circulation And Cleaning System | |
 |
 |
|
1.Chamber doctor blade is made of robust steel construction with a quick change system.
2.Aluminum alloy profile doctor blade cavity, seal ink, reduce solvent volatilization, keep ink viscosity and clean.
3.It is easy to replace the doctor blade and the seal block of the cavity in chamber doctor blade type, and cleaning is convenient.
4.The forward and reverse doctor blade are arranged in doctor blade cavity.
5.Reverse doctor blade acts as a seal.Forward doctor blade acts scraping ink.
6.Doctor blade pressure is adding by pneumatic, overall pressure is uniform, pressure can be adjusted mechanism.
7.Ink supply adopt Pneumatic diaphragm pump.
|
|
| PLC&AI Printing Online Inspection System | |
 |
 |
|

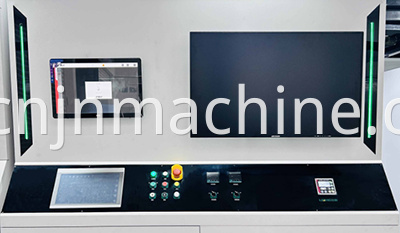

1.Video inspector：Monitor printing quality and color registration accuracy at all times
2.AI printing online inspection system：a high-speed industrial camera scans the printed image in real time and displays it in full width. It intelligently analyzes the scanned image and marks the image defect points.
|
|
| Part 3 Drying Unit | |
| Fully Automatic Frequency Conversion Temperature Control System | |
 |
 |
|
1.Post-press: centralized drying adopt hot air drying.
2.Intelligent continuous constant temperature control, fully enclosed structure, air box adopts heat preservation structure.
3.Air volume is controlled by frequency conversion, and fan speed can be set.
4.With secondary return air function, reduce energy waste
5.Heating methods can choose electric heating, steam heating or oil heating.
6.Guide roller in the drying box adopts the active form, speed is synchro with the host computer
7.The length of the horizontal drying box is 4.5m
8.Maximum hot air temperature 80℃ (room temperature 20℃)
9.Wind speed of drying channel 5～30m/s
|
|
